How Medium Density Fibreboard (MDF) Is Made

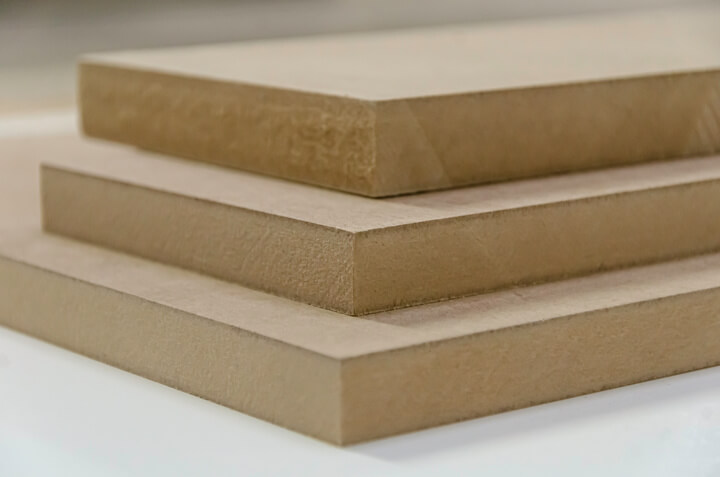

Medium Density Fibreboard, commonly known as MDF, has become an integral part of the construction and furniture industries. This versatile material offers a balance of strength, durability, and cost-effectiveness that makes it a popular choice for various applications. In this comprehensive guide, we will explore the intricate process of manufacturing MDF, from raw materials to the finished product. Understanding this process is crucial for professionals in the construction industry, as it provides insight into the material’s properties, applications, and potential limitations.

The global MDF market is experiencing robust growth, fueled by the construction and furniture industries’ increasing appetite for this engineered wood product. With urbanisation on the rise and a growing preference for sustainable and cost-effective building materials, the MDF market is poised to reach a staggering $67.64 billion by 2030, according to Research and Markets. China dominates global MDF production, while Europe’s leaders are Turkey and Germany.

Raw Materials: The Foundation of Medium Density Fibreboard

Wood Fibers: The Primary Ingredient

The production of Medium Density Fibreboard begins with the selection of appropriate raw materials. The primary component of MDF is wood fiber, typically sourced from:

• Softwood species (e.g., pine, spruce)
• Hardwood species (e.g., oak, maple)
• Recycled wood products

The choice of wood species can influence the final properties of the MDF, including strength, density, and workability. Manufacturers often use a combination of different wood types to achieve the desired characteristics in the finished product.

Resins and Additives: Binding and Enhancing

In addition to wood fibers, MDF production requires:

• Synthetic resins (usually urea-formaldehyde or melamine-formaldehyde)
• Wax emulsions
• Chemical additives (e.g., fire retardants, moisture repellents)

These components play crucial roles in binding the wood fibers together and enhancing the properties of the final product. The specific formulation of resins and additives is often tailored to meet the requirements of different applications and environmental regulations.

Preparation of Wood Fibers

Debarking and Chipping

The first step in processing the raw wood is debarking. Large machines remove the bark from logs, as bark can negatively affect the quality of the final product. After debarking, the logs are fed into chipping machines, which reduce them to small, uniform wood chips.

Screening and Cleaning

The wood chips then undergo a screening process to ensure uniformity in size. Oversized chips are re-chipped, while undersized particles and dust are typically used for other purposes or as fuel for the manufacturing process. The chips are also cleaned to remove any contaminants that could affect the quality of the fibreboard.

Refining: Creating Wood Fibers

The clean, uniformly-sized wood chips are then processed in a refiner. This machine uses steam and mechanical action to break down the chips into individual wood fibers. The refining process is critical as it determines the fiber size and quality, which directly impact the properties of the finished MDF.

Blending and Forming

Resin Application

Once the wood fibers are prepared, they are mixed with the resin and other additives in a blending machine. This process ensures that each fiber is evenly coated with the binding agents. The precise ratio of fibers to resin is carefully controlled to achieve the desired properties in the final product.

Mat Formation

The resin-coated fibers are then spread onto a forming line to create a uniform mat. The thickness of this mat is carefully controlled to match the desired thickness of the final MDF panel. Advanced forming systems use sensors and computer controls to ensure even distribution and consistent density across the mat.

Pressing and Curing

Pre-pressing

Before the main pressing operation, the formed mat undergoes a pre-pressing stage. This initial compression removes air from the mat and begins to consolidate the fibers. Pre-pressing helps to ensure more uniform density throughout the final panel.

Hot Pressing

The pre-pressed mat is then transferred to a hot press. Under high temperature (typically 140-220°C) and pressure, the mat is compressed to its final thickness. The heat activates the resin, causing it to cure and bond the wood fibers together. The duration of the pressing cycle depends on the thickness of the panel and the specific resin system used.

Cooling

After hot pressing, the MDF panels are cooled to stabilise their structure. This cooling process is carefully controlled to prevent warping or internal stresses that could affect the panel’s performance.

Finishing and Quality Control

Trimming and Sanding

Once cooled, the MDF panels are trimmed to their final dimensions. The edges are cut smooth, and the surfaces are sanded to achieve the desired smoothness. This step is crucial for ensuring that the panels meet the specified thickness tolerances and surface quality requirements.

Quality Inspection

Throughout the manufacturing process, and especially at this final stage, rigorous quality control measures are implemented. These may include:

• Density profile analysis
• Internal bond strength testing
• Surface smoothness evaluation
• Dimensional stability checks

These tests ensure that the MDF panels meet industry standards and customer specifications.

Environmental Considerations in Medium Density Fibreboard Production

Sustainable Wood Sourcing

Many MDF manufacturers are increasingly focusing on sustainable wood sourcing practices. This includes:

• Using wood from certified sustainable forests
• Incorporating recycled wood content
• Optimising wood utilisation to minimise waste

Emission Control

The production of MDF has historically been associated with formaldehyde emissions. However, the industry has made significant strides in addressing this issue:

• Development of low-emission and no-added formaldehyde (NAF) resins
• Implementation of advanced emission control technologies in manufacturing facilities
• Compliance with stringent emission standards (e.g., CARB Phase 2 in California)

Energy Efficiency

Modern MDF production facilities are designed with energy efficiency in mind. This includes:

• Using wood waste as a fuel source for heating processes
• Implementing heat recovery systems
• Optimising production schedules to minimise energy consumption

Applications of Fibreboard in the Construction Industry

Medium Density Fibreboard’s versatility makes it suitable for a wide range of applications in construction and interior design:

Cabinetry and Furniture

MDF’s smooth surface and consistent density make it an excellent material for:

• Kitchen and bathroom cabinets
• Office furniture
• Retail display fixtures

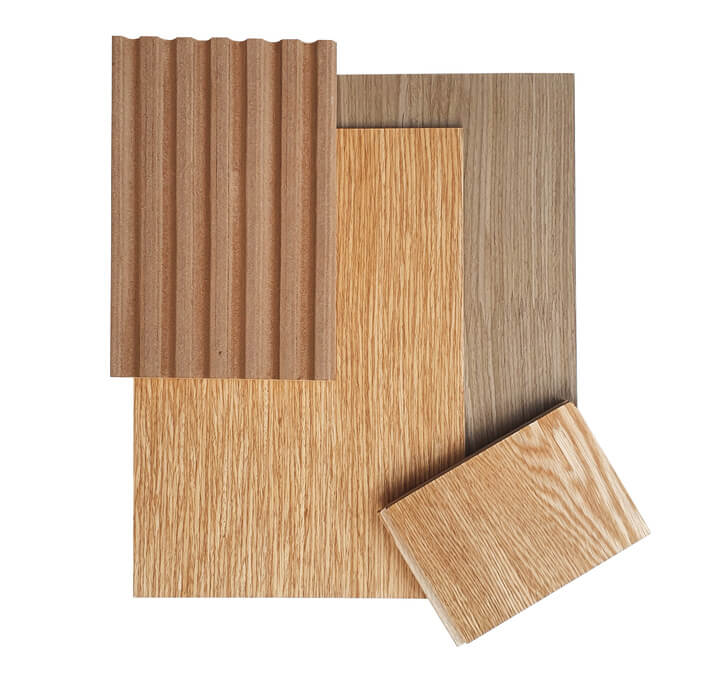

Interior Trim and Moldings

The workability of MDF allows for intricate designs in:

• Baseboards and crown moldings
• Door frames and window sills
• Decorative wall panels

Flooring

MDF serves as a core material in engineered wood flooring, providing:

• Dimensional stability
• Sound insulation properties
• A smooth surface for veneer application

Structural Components

In certain applications, MDF can be used for non-load-bearing structural elements:

• Partition walls
• Ceiling tiles
• Door cores

Advantages and Limitations of Medium Density Fibreboard

Advantages

• Consistent density and smooth surface
• Excellent machinability and finishing properties
• Cost-effective compared to solid wood
• Versatility in design applications

Limitations

• Susceptibility to moisture damage if not properly sealed
• Lower screw-holding capacity compared to plywood
• Potential for formaldehyde emissions (though significantly reduced in modern products)
• Heavier than some alternative materials

Future Trends in Fibreboard Manufacturing

The MDF industry continues to evolve, with several trends shaping its future:

Advanced Formulations

Researchers and manufacturers are developing new resin systems and additives to:

• Further reduce emissions
• Improve moisture resistance
• Enhance fire retardancy

Digital Manufacturing

The integration of Industry 4.0 technologies is transforming MDF production:

• IoT sensors for real-time process monitoring
• AI-driven quality control systems
• Automated material handling and inventory management

Customisation and Specialisation

MDF manufacturers are increasingly offering specialised products tailored to specific applications:

• Ultra-lightweight MDF for furniture
• High-density MDF for structural applications
• Exterior-grade MDF with enhanced weather resistance

The manufacturing process of Medium Density Fibreboard is a complex interplay of material science, engineering, and quality control. From the careful selection of raw materials to the final finishing touches, each step in the production process contributes to the creation of a versatile and widely-used construction material.

For professionals in the construction industry, a deep understanding of how MDF is made provides valuable insights into its properties, applications, and limitations. This knowledge can inform material selection decisions, guide installation practices, and help in addressing client concerns about sustainability and indoor air quality.

As the industry continues to innovate, we can expect to see even more advanced MDF products that offer enhanced performance, improved sustainability, and new possibilities for design and construction. By staying informed about these developments, construction professionals can leverage the full potential of MDF in their projects, delivering high-quality, cost-effective solutions that meet the evolving needs of the built environment.
